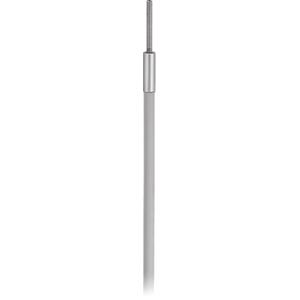

di-soric WRB 230 M-M2.5-1.5: 203444 - Glass Fiber Optic Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | WRB 230 M-M2.5-1.5 |
di-soric Glass Fiber Optic Sensors WRB 230 M-M2.5-1.5, 203444 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Through-beam sensor |
| Design | Thread |
| Housing length | 15 mm |
| Protection type | IP 60 |
| Material | Stainless steel (Sensor probe)metal sleeve (Coating) |
| Length | 1,000 mm |
| Dimension fiber bundle | Ø 1.5 mm |
| Light aperture | axial |
| Mounting diameter | Ø 5 mm |
| Bending radius | > 10 x tube-Ø |
| Material of fiber | Glass fibers |
| Single fiber | Ø 0.05 mm |
| To be used for | Amplifiers for glass fiber optics |
| Opening angle | 67° |
| Scanning range | 250 mm |
| Temperature resistance | -40 … +180 °C (temporarily up to +300 °C) |
