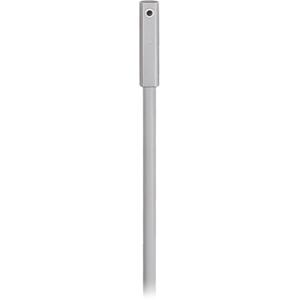

di-soric WRB 210 MR-8.0-2.5: 202052 - Glass Fiber Optic Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | WRB 210 MR-8.0-2.5 |
di-soric Glass Fiber Optic Sensors WRB 210 MR-8.0-2.5, 202052 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Through-beam sensor |
| Design | Cylinder |
| Housing length | 35 mm |
| Protection type | IP 60 |
| Material | Stainless steel (Sensor probe)metal sleeve (Coating) |
| Length | 300 mm |
| Dimension fiber bundle | Ø 2.5 mm |
| Light aperture | radial |
| Mounting diameter | Ø 8 mm |
| Bending radius | > 10 x tube-Ø |
| Material of fiber | Glass fibers |
| Single fiber | Ø 0.05 mm |
| To be used for | Amplifiers for glass fiber optics |
| Opening angle | 67° |
| Scanning range | 800 mm |
| Temperature resistance | -40 … +180 °C (temporarily up to +300 °C) |
