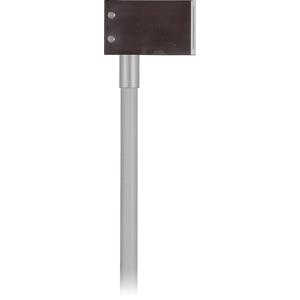

di-soric WRB 130 SQ-90-20-0.6: 202038 - Glass Fiber Optic Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | WRB 130 SQ-90-20-0.6 |
di-soric Glass Fiber Optic Sensors WRB 130 SQ-90-20-0.6, 202038 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Diffuse sensor |
| Design | Cuboid design |
| Housing length | 40 mm |
| Housing height | 10 mm |
| Housing width | 25 mm |
| Protection type | IP 67 |
| Material | Aluminum (Sensor probe)Silicone-metal sleeve (Coating) |
| Length | 1,000 mm |
| Dimension fiber bundle | 20 mm x 0.6 mm |
| Light aperture | radial |
| Bending radius | > 3 x tube-Ø |
| Material of fiber | Glass fibers |
| Single fiber | Ø 0.05 mm |
| To be used for | Amplifiers for glass fiber optics |
| Opening angle | 67° |
| Scanning range | 200 mm |
| Temperature resistance | -40 … +180 °C (temporarily up to +250 °C) |
