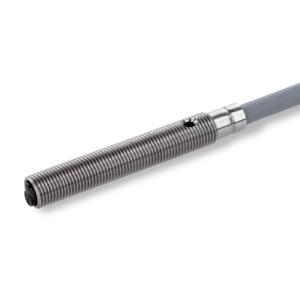

di-soric OTM05-50PS-2R: 213025 - Diffuse Reflective Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OTM05-50PS-2R |
di-soric Diffuse Reflective Sensors OTM05-50PS-2R, 213025 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Retroreflective diffuse sensor |
| Evaluation | digital |
| Design | Thread |
| Switching output | pnp, 100 mA, NO |
| Voltage drop (max.) | 2 V |
| Light source | LED |
| Color | Red |
| Wavelength | 630 nm |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 15 mA |
| Housing length | 35.8 mm |
| Housing material | Stainless steel (V2A) |
| Protection class | III, operation on protective low voltage |
| Sensitivity adjustment | no setting elements |
| Switching frequency | 1000 Hz |
| Ambient temperature during operation | -25 … +65 °C |
| Protection type | IP 67 |
| Connection | Cable, 2.0 m |
| Display | LED yellow - Switching output |
| Material | Plastic (Window / optics) |
| Thread | M5 x 0.5 |
| Material of cable | Polyurethane |
| Scanning range | 50 mm |
| Weight | 30 g |
