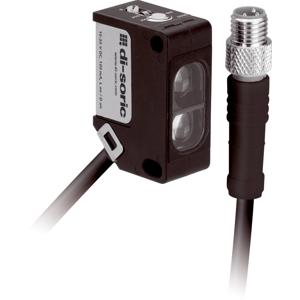

di-soric OT 31 K 400 N3-T4: 209242 - Diffuse Reflective Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OT 31 K 400 N3-T4 |
di-soric Diffuse Reflective Sensors OT 31 K 400 N3-T4, 209242 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Retroreflective diffuse sensor |
| Evaluation | digital |
| Design | Cuboid design |
| Switching output | npn, 100 mA, NO/NC, switchable |
| Voltage drop (max.) | 2 V |
| Light source | LED |
| Color | Red |
| Wavelength | 630 nm |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 30 mA |
| Insulation voltage endurance | 1000 V |
| Housing dimensions | 31.2 x 21 x 12.8 mm |
| Housing length | 21 mm |
| Housing height | 31.2 mm |
| Housing width | 12.8 mm |
| Housing material | Plastic (PA, 6.6) |
| Protection class | III, operation on protective low voltage |
| Modulation | Clocked |
| Ambient light immunity | 3 kLx Halogen light, 10 kLx Sunlight |
| Switching hysteresis (max.) | 10 % |
| Sensitivity adjustment | Potentiometer |
| Switching frequency | 2000 Hz |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 4-pin |
| Connection cable | TK … /4 |
| Response time | 0.25 ms |
| Release time | 0.25 ms |
| Material | PMMA (Window) |
| Scanning range | 400 mm |
