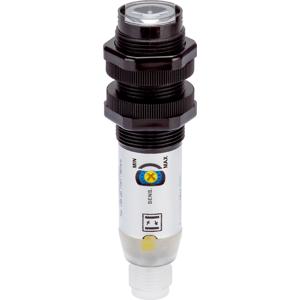

di-soric OT 18-1 K 30 P3-B4: 210026 - Diffuse Reflective Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OT 18-1 K 30 P3-B4 |
di-soric Diffuse Reflective Sensors OT 18-1 K 30 P3-B4, 210026 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Retroreflective diffuse sensor |
| Evaluation | digital |
| Design | Thread |
| Switching output | pnp, 100 mA, NO/NC, programmable |
| Light source | LED |
| Color | Red |
| Wavelength | 635 nm |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 30 mA |
| Insulation voltage endurance | 1000 V |
| Housing length | 80 mm |
| Housing material | Plastic |
| Protection class | III, operation on protective low voltage |
| Ambient light immunity | 10 kLx |
| Sensitivity adjustment | Potentiometer |
| Switching frequency | 300 Hz |
| Ambient temperature during operation | -25 … +55 °C |
| Protection type | IP 66 |
| Connection | Connector, M12, 4-pin |
| Response time | 2.0 ms |
| Release time | 2.0 ms |
| Material | PMMA (Window) |
| Thread | M18 x 1 |
| Scanning range | 10 … 30 mm (adjustable) |
