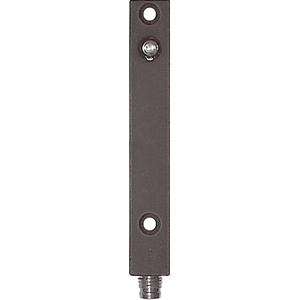

di-soric OSPQ 12 MLF-TSSL: 204084 - High-performance Light Barriers
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OSPQ 12 MLF-TSSL |
di-soric High-performance Light Barriers OSPQ 12 MLF-TSSL, 204084 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Through-beam sensor, transmitter |
| Evaluation | digital |
| Design | Cuboid design |
| Light source | LED |
| Color | Infrared |
| Wavelength | 870 nm |
| Service voltage | 10 … 35 V DC |
| No-load current (max.) | 55 mA |
| Housing dimensions | 82 x 12 x 12 mm |
| Housing length | 82 mm |
| Housing height | 12 mm |
| Housing width | 12 mm |
| Housing material | Aluminum (Anodized) |
| Protection class | III, operation on protective low voltage |
| Modulation | Clocked |
| Sensitivity adjustment | no setting elements |
| Ambient temperature during operation | -20 … +60 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
| Range | 0 … 20000 mm (dependent on the receiver) |
| Characteristics | High transmit power and dirt penetration |
| Consisting of | Transmitter |
