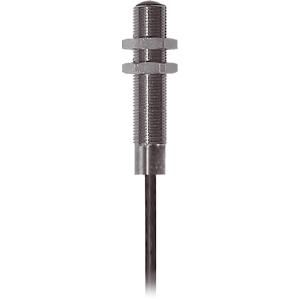

di-soric OSP 12 VLFL-5M: 204085 - High-performance Light Barriers
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OSP 12 VLFL-5M |
di-soric High-performance Light Barriers OSP 12 VLFL-5M, 204085 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Through-beam sensor, transmitter |
| Evaluation | digital |
| Design | Thread |
| Light source | LED |
| Color | Infrared |
| Wavelength | 870 nm |
| Service voltage | 10 … 35 V DC |
| No-load current (max.) | 55 mA |
| Housing length | 60 mm |
| Housing material | Stainless steel (V2A 1.4301 / AISI 304) |
| Protection class | III, operation on protective low voltage |
| Modulation | Clocked |
| Sensitivity adjustment | no setting elements |
| Ambient temperature during operation | -20 … +60 °C |
| Protection type | IP 67 / IP 68 / IP 69K |
| Connection | Cable, 5.0 m |
| Range | 0 … 20000 mm (dependent on the receiver) |
| Characteristics | High transmit power and dirt penetration |
| Thread | M12 x 1 |
| Material of cable | PVC |
| Consisting of | Transmitter |
