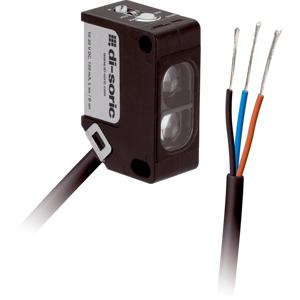

di-soric OR 31 K 5000 P3-3: 209256 - Retro-reflective Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OR 31 K 5000 P3-3 |
di-soric Retro-reflective Sensors OR 31 K 5000 P3-3, 209256 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Retroreflective sensor |
| Evaluation | digital |
| Design | Cuboid design |
| Switching output | pnp, 100 mA, NO/NC, switchable |
| Voltage drop (max.) | 2 V |
| Light source | LED |
| Color | Red |
| Wavelength | 630 nm |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 30 mA |
| Insulation voltage endurance | 500 V |
| Housing dimensions | 31.2 x 21 x 12.8 mm |
| Housing length | 21 mm |
| Housing height | 31.2 mm |
| Housing width | 12.8 mm |
| Housing material | Plastic (PA, 6.6) |
| Protection class | III, operation on protective low voltage |
| Modulation | Clocked |
| Ambient light immunity | 3 kLx Halogen light, 10 kLx Sunlight |
| Switching hysteresis (max.) | 10 % |
| Sensitivity adjustment | Potentiometer |
| Switching frequency | 2000 Hz |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, 2.0 m, 3-pin (flying leads) |
| Range | 20 … 5000 mm |
| Response time | 0.25 ms |
| Release time | 0.25 ms |
| Material | PMMA (Window) |
| Referring reflector | Ø 84 mm, R 84 |
