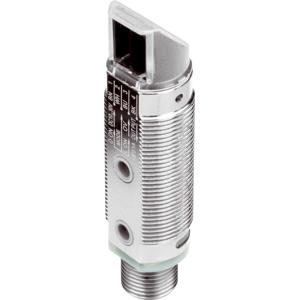

di-soric OR 18-1 FMR 3600 P3-B4: 207970 - Retro-reflective Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OR 18-1 FMR 3600 P3-B4 |
di-soric Retro-reflective Sensors OR 18-1 FMR 3600 P3-B4, 207970 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Retroreflective sensor |
| Evaluation | digital |
| Design | Thread, Angled optics |
| Switching output | pnp, 100 mA, NO/NC |
| Voltage drop (max.) | 2 V |
| Light source | LED |
| Color | Red |
| Wavelength | 660 nm |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 30 mA |
| Housing length | 67.5 mm |
| Housing material | Metal |
| Protection class | III, operation on protective low voltage |
| Modulation | Clocked |
| Ambient light immunity | 3 kLx Clocked light, 10 kLx Sunlight |
| Sensitivity adjustment | Potentiometer |
| Switching frequency | 1000 Hz |
| Ambient temperature during operation | -25 … +55 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 4-pin |
| Range | 4000 mm |
| Response time | 0.50 ms |
| Release time | 0.50 ms |
| Material | PMMA (Window) |
| Thread | M18 x 1 |
| Referring reflector | R55 (included) |
| Range during operation with | 1800 mm (R55)3600 mm (R 84)4000 mm (R 100x100) |
