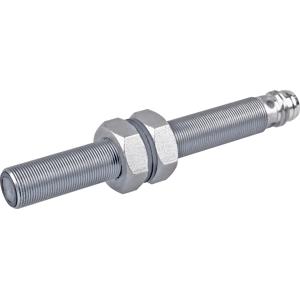

di-soric OLS 08 V 2000-TSSL: 202985 - Laser Through-beam Sensor
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OLS 08 V 2000-TSSL |
di-soric Laser Through-beam Sensor OLS 08 V 2000-TSSL, 202985 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Through-beam sensor |
| Evaluation | digital |
| Design | Thread |
| Voltage drop (max.) | 2.5 V |
| Light source | Laser |
| Color | Red |
| Wavelength | 650 nm (Pp < 1.2 mW t = 6 µs) |
| Service voltage | 10 … 35 V DC |
| No-load current (max.) | 30 mA |
| Insulation voltage endurance | 500 V |
| Housing length | 70 mm |
| Housing material | Stainless steel |
| Protection class | III, operation on protective low voltage |
| Modulation | Clocked |
| Sensitivity adjustment | no setting elements |
| Switching frequency | 2000 Hz |
| Ambient temperature during operation | 0 … +50 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
| Connection cable | TK … |
| Range | 0 … 2000 mm |
| Thread | M8 x 0.5 |
| Consisting of | Transmitter |
