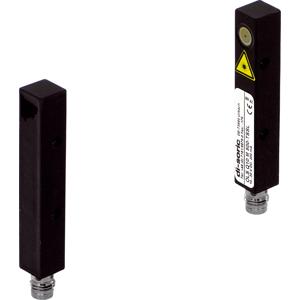

di-soric OLE Q10 M 500 P1K-TSSL: 202970 - Laser Through-beam Sensor
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OLE Q10 M 500 P1K-TSSL |
di-soric Laser Through-beam Sensor OLE Q10 M 500 P1K-TSSL, 202970 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Through-beam sensor |
| Evaluation | digital |
| Design | Cuboid design |
| Switching output | pnp, 200 mA, NC |
| Voltage drop (max.) | 2.5 V |
| Light source | Laser |
| Service voltage | 10 … 35 V DC |
| No-load current (max.) | 30 mA |
| Insulation voltage endurance | 500 V |
| Housing dimensions | 10 x 10 x 60 mm |
| Housing length | 10 mm |
| Housing height | 10 mm |
| Housing width | 60 mm |
| Housing material | Die-cast zinc (Black, painted) |
| Protection class | III, operation on protective low voltage |
| Ambient light immunity | 5 kLx |
| Resolution | Ø 0.2 mm |
| Switching hysteresis (max.) | 0.1 mm |
| Reproducibility | < 0.1 mm |
| Sensitivity adjustment | no setting elements |
| Switching frequency | 2000 Hz |
| Ambient temperature during operation | 0 … +50 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
| Range | 0 … 500 mm |
| Material | Glass (Window) |
| Consisting of | Receiver |
