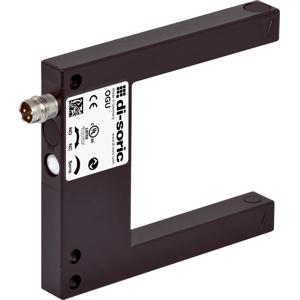

OGU 051 G3-T3: 210244 - di-soric Fork Light Barriers
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OGU 051 G3-T3 |
di-soric Fork Light Barriers OGU 051 G3-T3, 210244 Technical Specifications:
| Specification | Value |
|---|---|
| Operating principle | Optical |
| Evaluation | digital |
| Design | Fork |
| Switching output | Push-pull, 100 mA, NO/NC, switchable |
| Light source | LED |
| Color | Red |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 30 mA |
| Insulation voltage endurance | 500 V |
| Leg length internal | 55 mm |
| Housing dimensions | 70 x 80 x 10 mm |
| Housing length | 80 mm |
| Housing height | 70 mm |
| Housing width | 10 mm |
| Housing material | Die-cast zinc (Black, powder-coated) |
| Protection class | III, operation on protective low voltage |
| Approvals | UL |
| Modulation | Clocked |
| Fork opening | 50 mm |
| Sensitivity adjustment | Potentiometer or IO-Link |
| Ambient temperature during operation | -25 … +60 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
| Connection cable | TK … |
| Resolution (factory setting) | 0.3 mm (STANDARD) |
| Reproducibility (factory setting) | 0.02 mm (STANDARD) |
| Resolution (STANDARD) | 0.3 mm |
| Reproducibility (STANDARD) | 0.02 mm |
| Resolution (HIGH RESOLUTION) | 0.2 mm |
| Reproducibility (HIGH RESOLUTION) | 0.02 mm |
| Resolution (POWER) | 1 mm |
| Reproducibility (POWER) | 0.02 mm |
| Resolution (SPEED) | 0.3 mm |
| Reproducibility (SPEED) | 0.02 mm |
| Switching frequency (factory setting) | 5000 Hz (STANDARD) |
| Switching frequency (STANDARD) | 5000 Hz |
| Switching frequency (HIGH RESOLUTION) | 1500 Hz |
| Switching frequency (POWER) | 250 Hz |
| Switching frequency (SPEED) | 8000 Hz |
| Operation modes | STANDARD, HIGH RESOLUTION, POWER, SPEED |
Obtain a quote for the di-soric OGU 051 G3-T3 Fork Light Barrier (Article No: 210244) at economical prices from IndMALL. This high-precision optical sensor is designed for accurate object detection with a digital evaluation system in a fork design. It features a push-pull switching output (100 mA, NO/NC, switchable) for seamless integration into automation systems.
Operating on 10–30V DC, it uses a red LED light source for consistent and precise detection. The fork opening is 50 mm, and it supports multiple resolutions, including STANDARD (0.3 mm, 5,000 Hz), HIGH RESOLUTION (0.2 mm, 1,500 Hz), POWER (1 mm, 250 Hz), and SPEED (0.3 mm, 8,000 Hz). The rugged die-cast zinc housing (IP67-rated, black, powder-coated) ensures durability in demanding environments. With UL approval, M8, 3-pin connector, and adjustable sensitivity via Potentiometer or IO-Link, it offers flexibility and high performance.
