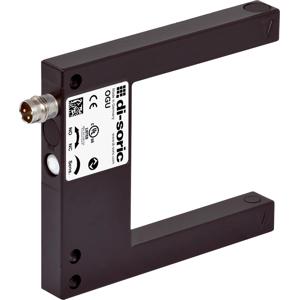

di-soric OGU 041 G3-T3: 210627 - Fork Light Barriers
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OGU 041 G3-T3 |
di-soric Fork Light Barriers OGU 041 G3-T3, 210627 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Optical |
| Evaluation | digital |
| Design | Fork |
| Switching output | Push-pull, 100 mA, NO/NC, switchable |
| Light source | LED |
| Color | Red |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | 500 V |
| Leg length internal | 45 mm |
| Housing dimensions | 60 x 70 x 10 mm |
| Housing length | 70 mm |
| Housing height | 60 mm |
| Housing width | 10 mm |
| Housing material | Die-cast zinc (Black, powder-coated) |
| Protection class | III, operation on protective low voltage |
| Approvals | UL |
| Modulation | Clocked |
| Fork opening | 40 mm |
| Sensitivity adjustment | Potentiometer or IO-Link |
| Ambient temperature during operation | -25 … +60 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
| Connection cable | TK … |
| Resolution (factory setting) | 0.3 mm (STANDARD) |
| Reproducibility (factory setting) | 0.02 mm (STANDARD) |
| Resolution (STANDARD) | 0.3 mm |
| Reproducibility (STANDARD) | 0.02 mm |
| Resolution (HIGH RESOLUTION) | 0.2 mm |
| Reproducibility (HIGH RESOLUTION) | 0.02 mm |
| Resolution (POWER) | 1 mm |
| Reproducibility (POWER) | 0.02 mm |
| Resolution (SPEED) | 0.3 mm |
| Reproducibility (SPEED) | 0.02 mm |
| Switching frequency (factory setting) | 5000 Hz (STANDARD) |
| Switching frequency (STANDARD) | 5000 Hz |
| Switching frequency (HIGH RESOLUTION) | 1500 Hz |
| Switching frequency (POWER) | 250 Hz |
| Switching frequency (SPEED) | 8000 Hz |
| Operation modes | STANDARD, HIGH RESOLUTION, POWER, SPEED |
