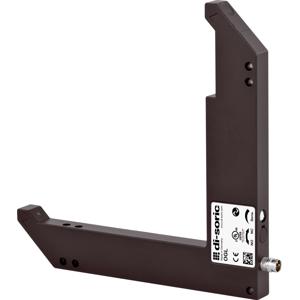

di-soric OGL 120 G3-T3: 210629 - Angled Light Barriers
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OGL 120 G3-T3 |
di-soric Angled Light Barriers OGL 120 G3-T3, 210629 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Optical |
| Evaluation | digital |
| Design | Angle |
| Switching output | Push-pull, 100 mA, NO/NC, switchable |
| Voltage drop (max.) | 1 V |
| Light source | LED |
| Color | Infrared |
| Wavelength | 880 nm |
| Service voltage | 10 … 30 V DC (Supply Class 2) |
| No-load current (max.) | 40 mA |
| Insulation voltage endurance | 500 V |
| Leg length internal | 120/120 mm |
| Housing dimensions | 150 x 150 x 12 mm |
| Housing length | 150 mm |
| Housing height | 150 mm |
| Housing width | 12 mm |
| Housing material | Die-cast zinc (powder-coated) |
| Protection class | III, operation on protective low voltage |
| Approvals | UL |
| Modulation | Clocked |
| Ambient light immunity | 20 kLx |
| Sensitivity adjustment | Potentiometer |
| Ambient temperature during operation | -25 … +60 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
| Connection cable | TK … |
| Range | 158 mm (optical axis) |
| Material | Mineral glass (Optics) |
| Resolution (factory setting) | 0.5 mm (STANDARD) |
| Reproducibility (factory setting) | 0.03 mm (STANDARD) |
| Resolution (STANDARD) | 0.5 mm |
| Reproducibility (STANDARD) | 0.03 mm |
| Resolution (HIGH RESOLUTION) | 0.4 mm |
| Reproducibility (HIGH RESOLUTION) | 0.03 mm |
| Resolution (POWER) | 1.5 mm |
| Reproducibility (POWER) | 0.03 mm |
| Resolution (SPEED) | 0.5 mm |
| Reproducibility (SPEED) | 0.03 mm |
| Switching frequency (factory setting) | 5000 Hz (STANDARD) |
| Switching frequency (STANDARD) | 5000 Hz |
| Switching frequency (HIGH RESOLUTION) | 1500 Hz |
| Switching frequency (POWER) | 250 Hz |
| Switching frequency (SPEED) | 8000 Hz |
