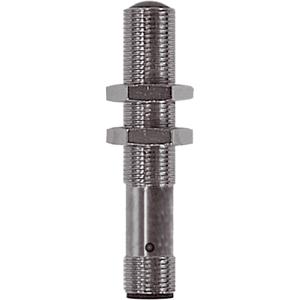

di-soric OEP 12 V 50000 G2-IBSL: 204086 - High-performance Light Barriers
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | OEP 12 V 50000 G2-IBSL |
di-soric High-performance Light Barriers OEP 12 V 50000 G2-IBSL, 204086 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Through-beam sensor, receiver |
| Evaluation | digital |
| Design | Thread |
| Switching output | Push-pull, 200 mA, NO (pnp) / NC (npn) |
| Service voltage | 10 … 35 V DC |
| No-load current (max.) | 40 mA |
| Housing length | 66 mm |
| Housing material | Stainless steel (V2A 1.4301 / AISI 304) |
| Protection class | III, operation on protective low voltage |
| Ambient light immunity | 15 kLx Sunlight, 2 kLx Clocked light |
| Sensitivity adjustment | no setting elements |
| Switching frequency | 20 Hz |
| Ambient temperature during operation | -20 … +60 °C |
| Protection type | IP 67 / IP 68 / IP 69K |
| Connection | Connector, M12, 3-pin |
| Range | 0 … 50000 mm (dependent on the transmitter) |
| Characteristics | High transmit power and dirt penetration |
| Thread | M12 x 1 |
| Consisting of | Receiver |
