di-soric MZET 9-25 POL-K-TSS Magnetic Field Sensor

The di-soric MZET 9-25 POL-K-TSS Proximity Sensor offers Excentric mounting, pnp, 100 mA, NC, short-circuit-proof output, andPigtail, 0.3 m, M8, 3-pin connection. Manufactured by di-soric under the di-soric Proximity Sensor category, this model belongs to the IS Series.

di-soric MZET 9-25 POL-K-TSS
Datasheet
BrandDi-soric
Product TypeMagnetic Field Sensor
Model NumberMZET 9-25 POL-K-TSS

di-soric MZET 9-25 POL-K-TSS Magnetic Field Sensor - Technical Specifications

SpecificationValue
Current-carrying capacity100 mA, short-circuit-proof, polarity-safe
Service voltage10 … 30 V DC
No-load current (max.)10 mA
Insulation voltage endurance500 V
Cylinder grooveT-groove, Can be inserted into the groove from above
MountingExcentric
Housing materialPlastic (PA)
Material of cablePolyurethane
Protection classIII, operation on protective low voltage
Switching outputpnp, 100 mA, NC, short-circuit-proof
Voltage drop (max.)2.5 V
Reproducibility0.2 mm
DisplayLED yellow - Output signal
Switching frequency10000 Hz
Ambient temperature during operation-25 … +80 °C
Protection typeIP 67
ConnectionPigtail, 0.3 m, M8, 3-pin
Connection cableTK …
MaterialStainless steel (Fastening excentric)

Related Products

MZET 9-25 PSLMZET 9-25 PSL

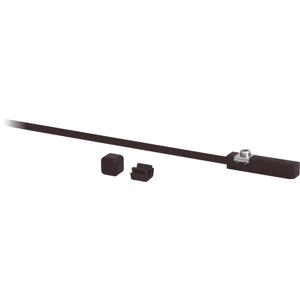

MZET 9-25 PSL-K-TSSMZET 9-25 PSL-K-TSS

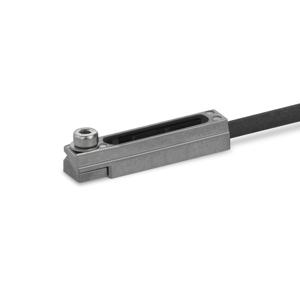

MZEK 25 PSK-K-IBSMZEK 25 PSK-K-IBS
