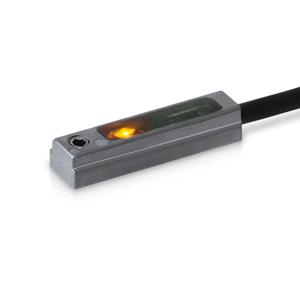

Di-soric MZET 25 PSK-K-TSSL Magnetic Field Sensor
The Di-soric MZET 25 PSK-K-TSSL Proximity Sensor offers Locking screw (Allen screw SW 1.5 mm) mounting, pnp, 200 mA, NO, short-circuit-proof output, andPigtail, 0.3 m, M8, 3-pin connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the IS Series.
| Brand | Di-soric |
| Product Type | Magnetic Field Sensor |
| Model Number | MZET 25 PSK-K-TSSL |
Di-soric MZET 25 PSK-K-TSSL Magnetic Field Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Current-carrying capacity | 200 mA, short-circuit-proof, polarity-safe |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 10 mA |
| Insulation voltage endurance | 500 V |
| Cylinder groove | T-groove, insertion in lateral direction of groove |
| Mounting | Locking screw (Allen screw SW 1.5 mm) |
| Housing material | Die-cast zinc |
| Material of cable | Polyurethane |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NO, short-circuit-proof |
| Voltage drop (max.) | 2 V |
| Switching capacity | < 6 W (30 V, 200 mA) |
| Reproducibility | 0.1 mm |
| Display | LED yellow - Output signal |
| Switching frequency | 1000 Hz |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 68 (Device and cable) / IP 67 (Connection plug) |
| Connection | Pigtail, 0.3 m, M8, 3-pin |
| Connection cable | TK … |
