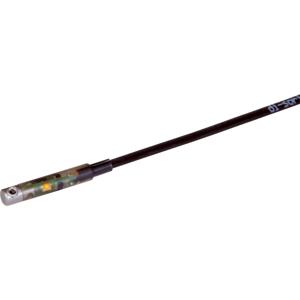

Home Products Magnetic Field Sensor di-soric MZES 3.9 PS-K-TSSL Di-soric MZES 3.9 PS-K-TSSL Magnetic Field Sensor The Di-soric MZES 3.9 PS-K-TSSL Proximity Sensor offers Locking screw mounting, pnp, NO output, andPigtail, 0.3 m, M8 connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the IS Series.
Brand Di-soric Product Type Magnetic Field Sensor Model Number MZES 3.9 PS-K-TSSL
Di-soric MZES 3.9 PS-K-TSSL Magnetic Field Sensor - Technical Specifications Specification Value Current-carrying capacity 100 mA, not short-circuit-proof, polarity-safe Service voltage 10 … 35 V DC No-load current (max.) 12 mA Insulation voltage endurance 500 V Cylinder groove C-groove 3.9 mm, insertion in lateral direction of groove Mounting Locking screw Housing material Stainless steel (V2A 1.4301 / AISI 304) / Plastic Material of cable TPU Protection class III, operation on protective low voltage Switching output pnp, NO Voltage drop (max.) 2 V Switching capacity < 3 W (30 V, 100 mA) Reproducibility < 0.1 mm Display LED yellow - Output signal Switching frequency 1000 Hz Ambient temperature during operation -20 … +70 °C Protection type IP 67 Connection Pigtail, 0.3 m, M8 Connection cable TK …
