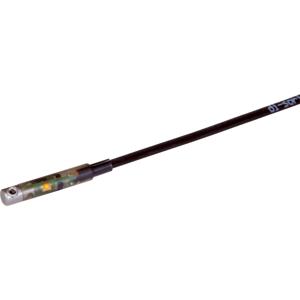

Di-soric MZEC 3.7 PS-K0.6-TSSL Magnetic Field Sensor

The Di-soric MZEC 3.7 PS-K0.6-TSSL Proximity Sensor offers Locking screw (Allen screw SW 1.3 mm) mounting, pnp, 100 mA, NO output, andPigtail, 0.6 m, M8, 3-pin, 3 x 0.08 mm² connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the IS Series.

di-soric MZEC 3.7 PS-K0.6-TSSL
Datasheet
BrandDi-soric
Product TypeMagnetic Field Sensor
Model NumberMZEC 3.7 PS-K0.6-TSSL

Di-soric MZEC 3.7 PS-K0.6-TSSL Magnetic Field Sensor - Technical Specifications

SpecificationValue
Current-carrying capacity100 mA, not short-circuit-proof, polarity-safe
Service voltage10 … 30 V DC
No-load current (max.)11 mA
Insulation voltage endurance500 V
Cylinder grooveC-groove 3.7 mm, insertion in lateral direction of groove
MountingLocking screw (Allen screw SW 1.3 mm)
Housing materialStainless steel (V2A 1.4301 / AISI 304) / Plastic
Material of cableTPU
Protection classIII, operation on protective low voltage
Switching outputpnp, 100 mA, NO
Voltage drop (max.)2 V
Switching capacity< 3 W (30 V, 100 mA)
Reproducibility< 0.1 mm
DisplayLED yellow - Output signal
Switching frequency1000 Hz
Ambient temperature during operation-20 … +70 °C
Protection typeIP 67
ConnectionPigtail, 0.6 m, M8, 3-pin, 3 x 0.08 mm²
Connection cableTK …
