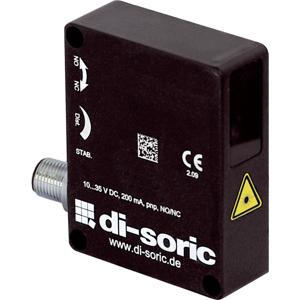

di-soric LRV 51 M 10000 P3K-IBS: 202508 - Retro-reflective Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | LRV 51 M 10000 P3K-IBS |
di-soric Retro-reflective Sensors LRV 51 M 10000 P3K-IBS, 202508 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Retroreflective sensor |
| Evaluation | digital |
| Design | Cuboid design |
| Switching output | pnp, 200 mA, NO/NC, switchable |
| Voltage drop (max.) | 2.8 V |
| Light source | Laser |
| Color | Red |
| Wavelength | 650 nm (Pp < 0.5 mW t = 1.6 µs) |
| Service voltage | 10 … 35 V DC |
| No-load current (max.) | 40 mA |
| Insulation voltage endurance | 500 V |
| Housing dimensions | 50 x 40 x 15 mm |
| Housing length | 40 mm |
| Housing height | 50 mm |
| Housing width | 15 mm |
| Housing material | Die-cast zinc (Black, painted) |
| Protection class | III |
| Modulation | Clocked |
| Ambient light immunity | 5 kLx |
| Resolution | Ø 2.5 mm |
| Switching hysteresis (max.) | 200 µm |
| Reproducibility | 0.1 mm |
| Sensitivity adjustment | Potentiometer |
| Switching frequency | 2000 Hz |
| Ambient temperature during operation | 0 … +50 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 3-pin |
| Connection cable | VK … |
| Range | 10000 mm |
| Response time | 2.5 ms |
| Release time | 2.5 ms |
| Material | PMMA (Window) |
| Referring reflector | RL 42 x 35 mm (included) |
