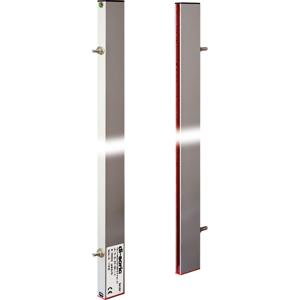

di-soric LI 120-12.5-1488-1540 I: 209595 - Switching Light Curtains
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | LI 120-12.5-1488-1540 I |
di-soric Switching Light Curtains LI 120-12.5-1488-1540 I, 209595 Technical Specifications:
| Specification | Value |
|---|
| Evaluation | absolute, percentage, Configurable via evaluation electronics |
| Switching output | Configurable via evaluation electronics, NO, NC |
| Light source | LED |
| Color | Infrared |
| Wavelength | 880 nm |
| Service voltage | 20 … 26 V DC (see evaluation electronics) |
| Housing material | Aluminum (natural) |
| Protection class | III, operation on protective low voltage |
| Ambient temperature during operation | -20 … +40 °C |
| Protection type | IP 54 (IP 65 optional) |
| Connection | Cable, 4.0 m (with plug connector, additional variants on request) |
| Range | 250 … 6000 mm (adjustable via evaluation electronics) |
| Measuring range | 1488 mm |
| Assembly | Threaded bolt (4) |
| Profile cross section | 12 x 24 mm |
| Dimension | A: 170 mmB: 400 mmX: 13.5 mmY: 38.5 mm |
| Profile length | 1540 mm |
| Evaluation electronics | external |
| Output function | Configurable via evaluation electronics |
| Beam evaluation | via external evaluation electronics |
| Beam separation | 12.5 mm |
| Number of beams | 120 |
| Monitoring height | 1488 mm |
