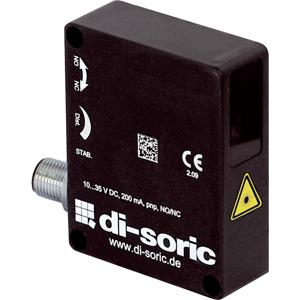

di-soric LHTTI 51 M 200 FG3-B4: 208133 - Background Suppression Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | LHTTI 51 M 200 FG3-B4 |
di-soric Background Suppression Sensors LHTTI 51 M 200 FG3-B4, 208133 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Diffuse sensor with background suppression |
| Evaluation | digital |
| Design | Cuboid design |
| Switching output | Push-pull, 200 mA, NO/NC, switchable |
| Voltage drop (max.) | 2 V |
| Light source | Laser |
| Color | Red |
| Wavelength | 650 nm (Pp < 2.6 mW t = 10 µs) |
| Service voltage | 10 … 35 V DC |
| No-load current (max.) | 25 mA (24 V DC) |
| Insulation voltage endurance | 500 V |
| Housing dimensions | 50 x 40 x 15 mm |
| Housing length | 40 mm |
| Housing height | 50 mm |
| Housing width | 15 mm |
| Housing material | Die-cast zinc (Black, painted) |
| Protection class | III |
| Modulation | Clocked |
| Ambient light immunity | 5 kLx |
| Switching hysteresis (max.) | 6 % |
| Sensitivity adjustment | Teach button, Remote teach |
| Switching frequency | 500 Hz |
| Ambient temperature during operation | -10 … +50 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 4-pin |
| Connection cable | VK … |
| Display | LED Green - Operation, yellow - Switching output |
| Material | PMMA (Window) |
| Scanning range | 50 … 200 mm |
