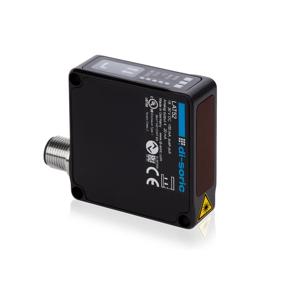

di-soric LAT52-80IU-B5: 212855 - Optical Distance Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | LAT52-80IU-B5 |
di-soric Optical Distance Sensors LAT52-80IU-B5, 212855 Technical Specifications:
| Specification | Value |
|---|
| Design | Cuboid design |
| Switching output | Push-pull (1x), 100 mA, NO/NC |
| Voltage drop (max.) | 2 V |
| Light source | Laser |
| Color | Red |
| Wavelength | 650 nm (Pp < 0.65 mW t = 4 µs) |
| Service voltage | 18 … 30 V DC (Supply Class 2) |
| No-load current (max.) | 60 mA |
| Insulation voltage endurance | 500 V |
| Housing dimensions | 51 x 51 x 17 mm |
| Housing material | Die-cast zinc (Black, powder-coated) |
| Protection class | III, operation on protective low voltage |
| Approvals | UL |
| Resolution | 0.01 mm (Mode: Standard, median value 16) |
| Reproducibility | 0.02 mm, Mode: Standard, median value 16 |
| Sensitivity adjustment | Keypad |
| Ambient temperature during operation | 0 … +50 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 5-pin |
| Connection cable | VK … /5 |
| Display | LED Green - Status, yellow - Switching output, Red - Signal weak |
| Measuring range | 30 … 80 mm (6 to 90 % remission) |
| Linearity error | 0.1 % (Mode: Standard, median value 16) |
| Operation modes | Standard operating modes: General applications, Speed: Quick measurement (measuring rate 1,200 Hz), Power: For dark objects |
| Weight | 102 g |
