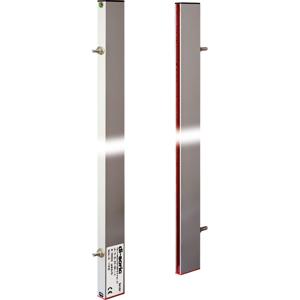

di-soric LA 64-25-1575-1760 I-D: 206422 - Switching Light Curtains
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | LA 64-25-1575-1760 I-D |
di-soric Switching Light Curtains LA 64-25-1575-1760 I-D, 206422 Technical Specifications:
| Specification | Value |
|---|
| Evaluation | horizontal |
| Switching output | pnp, 200 mA, NO, short-circuit-proof |
| Light source | LED |
| Color | Infrared |
| Wavelength | 880 nm |
| Service voltage | 20.4 … 28.8 V DC |
| Housing material | Aluminum (silver, Anodized) |
| Protection class | III, operation on protective low voltage |
| Ambient temperature during operation | -10 … +45 °C |
| Protection type | IP 54 (IP 65 optional) |
| Connection | Cable, 4.0 m (with ferrule) |
| Range | 700 … 4000 mm (factory setting) |
| Display | LED (Service voltage / output stage, error (alarm)) |
| EMC directives | EN 61000-6-3:2001 / EN 61000-6-1:2001 |
| Assembly | Threaded bolt (4) |
| Profile cross section | 12 x 24 mm |
| Dimension | A: 130 mmB: 500 mmX: 20 mmY: 160 mm |
| Profile length | 1760 mm |
| Evaluation electronics | integrated |
| Output function | Dark switching |
| Beam evaluation | via integrated evaluation electronics |
| Beam separation | 25 mm |
| Number of beams | 64 |
| Monitoring height | 1575 mm |
| Cycle time per light beam | 1 ms |
| Total cycle time | Anzahl Lichtstrahlen x 1 ms + 4 ms |
| Basic processing time | 4 ms |
