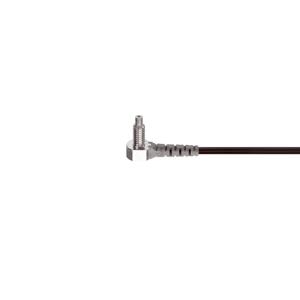

di-soric KLTR-M4-T2-0.5: 209953 - Plastic Fiber Optic Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | KLTR-M4-T2-0.5 |
di-soric Plastic Fiber Optic Sensors KLTR-M4-T2-0.5, 209953 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Diffuse sensor |
| Design | Thread |
| Resolution | Ø 0.1 mm |
| Range | 60 mm |
| Material | Stainless steel (Sensor probe)PE (Coating) |
| Characteristics | With cable protection bushing |
| Thread | M4 |
| Length | 2,000 mm (Can be shortened) |
| Light aperture | radial |
| Bending radius | > 15 mm |
| To be used for | Device series OLV-K Amplifier |
| Temperature resistance | -55 … +70 °C |
