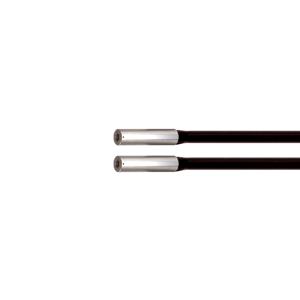

di-soric KLER-D4.75-19-S2-0.5: 209969 - Plastic Fiber Optic Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | KLER-D4.75-19-S2-0.5 |
di-soric Plastic Fiber Optic Sensors KLER-D4.75-19-S2-0.5, 209969 Technical Specifications:
| Specification | Value |
|---|
| Operating principle | Through-beam sensor |
| Design | Cylinder |
| Resolution | Ø 0.05 mm |
| Range | 200 mm |
| Material | Stainless steel (Sensor probe)PE (Coating) |
| Characteristics | With S-bushing |
| Length | 2,000 mm (Can be shortened) |
| Light aperture | radial |
| Bending radius | > 1 mm |
| Single fiber | Ø 0.50 mm |
| To be used for | Device series OLV-K Amplifier |
| Temperature resistance | -25 … +70 °C |
| Diameter | Ø 4.7 mm (Diameter) |
