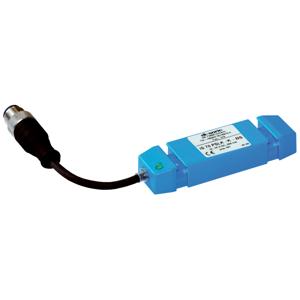

Di-soric IS 70 PSK-TSSL Proximity Sensor
The Di-soric IS 70 PSK-TSSL Proximity Sensor offers Cuboid design design, pnp, 200 mA, NO output, andConnector, M8, 3-pin connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the IS-Static Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | IS 70 PSK-TSSL |
Di-soric IS 70 PSK-TSSL Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | IS-Static |
| Operating principle | inductive |
| Design | Cuboid design |
| Service voltage | 10 … 35 V DC (Supply Class 2) |
| No-load current (max.) | 15 mA |
| Insulation voltage endurance | 500 V |
| Housing length | 70 mm |
| Housing height | 12 mm |
| Housing width | 20 mm |
| Housing material | Plastic (PC) |
| Protection class | III, operation on protective low voltage |
| Approvals | UL |
| Switching output | pnp, 200 mA, NO |
| Voltage drop (max.) | 2 V |
| Pulse stretching | 100 ms |
| Switching distance | 14 mm |
| Display | LED Green - Operation, yellow - Switching output |
| Speed of parts (max.) | 35 m/s |
| Response time | 0.50 ms |
| Release time | 100 ms |
| Shock/vibration load | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
| Connection cable | TK … |
