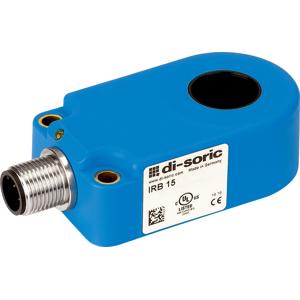

Home Products Inductive Sensor di-soric IRB 15 NS-B3 Di-soric IRB 15 NS-B3 Proximity Sensor The Di-soric IRB 15 NS-B3 Proximity Sensor offers npn, 200 mA, NO output, andConnector, M12, 4-pin, A-coded connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the IRB Series.
Brand Di-soric Product Type Proximity Sensor Model Number IRB 15 NS-B3
Di-soric IRB 15 NS-B3 Proximity Sensor - Technical Specifications Specification Value Product series IRB-Standard Operating principle inductive Service voltage 10 … 35 V DC (Supply Class 2) No-load current (max.) 11 mA Insulation voltage endurance 1000 V Housing material Plastic (PA) Protection class III, operation on protective low voltage Approvals UL Switching output npn, 200 mA, NO Voltage drop (max.) 2 V Pulse stretching 150 ms Speed of parts (max.) 35 m/s Shock/vibration load 30 g, 11 ms / 10 … 55 Hz, 1.0 mm Ambient temperature during operation -25 … +70 °C Protection type IP 67 Connection Connector, M12, 4-pin, A-coded Connection cable VK … Internal diameter 15.1 mm Material POM (Ring) Resolution Ø 2.5 mm Sensitivity adjustment no setting elements Readiness delay (max.) 300 ms
