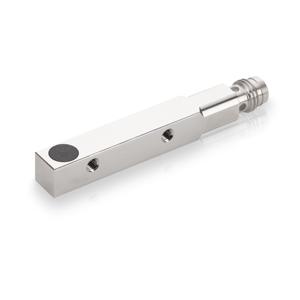

Di-soric INS-Q08-B02PO-T3 Proximity Sensor
The Di-soric INS-Q08-B02PO-T3 Proximity Sensor offers Cuboid design design, pnp, 200 mA, NC output, andConnector, M8, 3-pin, A-coded connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the INS Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | INS-Q08-B02PO-T3 |
Di-soric INS-Q08-B02PO-T3 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INS-200 Standard 2-SN |
| Operating principle | inductive |
| Design | Cuboid design |
| Installation type | Flush |
| Internal power consumption | 12 mA |
| Switching distance (SN) | 2 mm |
| Standardized measuring plate | 8 x 8 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | < 500 V DC |
| Housing length | 60 mm |
| Housing height | 8 mm |
| Housing width | 8 mm |
| Housing material | Brass (nickel-plated) |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NC |
| Voltage drop (max.) | 1.5 V DC |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin, A-coded |
| Characteristics | Double switching distance |
| Switching hysteresis (max.) | < 15 % |
| Switching frequency | 2000 Hz |
| LED Anzeige | Yes |
| Housing dimensions | 8 x 8 mm |
