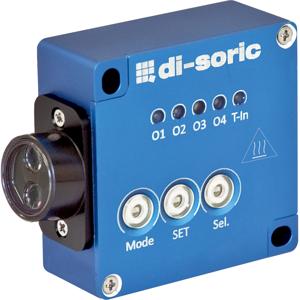

di-soric FS 50 M 60 G3-B8: 207126 - Color Sensors
| Brand | Di-soric |
| Product Type | Photoelectric Sensor |
| Model Number | FS 50 M 60 G3-B8 |
di-soric Color Sensors FS 50 M 60 G3-B8, 207126 Technical Specifications:
| Specification | Value |
|---|
| Switching output | pnp/npn (4x), NO/NC |
| Voltage drop (max.) | 2 V |
| Light source | LED (can be switched off) |
| Color | White |
| Service voltage | 18 … 28 V DC |
| No-load current (max.) | 500 mA |
| Housing dimensions | 50 x 50 x 21 mm |
| Housing length | 21 mm |
| Housing height | 50 mm |
| Housing width | 50 mm |
| Housing material | Aluminum (Anodized) |
| Protection class | III, operation on protective low voltage |
| Switching hysteresis (max.) | 0 … 255 % (10 % default) |
| Ambient temperature during operation | -10 … +55 °C |
| Protection type | IP 54 |
| Connection | Connector, M9, 8-pin |
| Range | 30 … 60 mm |
| Display | LED (Channel state (4x), programming (5x)) |
| Response time | 0.05 ms |
| Teach input | TRG 1 |
| Switching output coding | binary coded = 15 switching conditions (4x)pnp + npn (4x) |
| Response time / scanning frequency | 0.2 ms (bei 5.000 Hz: bis zu 100 Farben auswertbar)0.1 ms (bei 10.000 Hz: bis zu 30 Farben auswertbar)0.05 ms (bei 20.000 Hz: 3 Farben auswählbar) |
| Release time | < 20 000 Hz |
