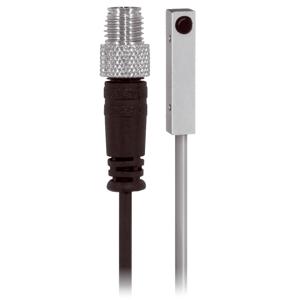

Di-soric DCCQ 05 M 1.5 PSLK Proximity Sensor
The Di-soric DCCQ 05 M 1.5 PSLK Proximity Sensor offers Cuboid design design, pnp, 200 mA, NO output, andCable, 2.0 m (flying leads) connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | DCCQ 05 M 1.5 PSLK |
Di-soric DCCQ 05 M 1.5 PSLK Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INM-300 Miniature Extended |
| Operating principle | inductive |
| Design | Cuboid design |
| Installation type | Flush |
| Internal power consumption | < 10 mA |
| Switching distance (SN) | 1.5 mm |
| Standardized measuring plate | 5 x 5 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Housing length | 25 mm |
| Housing height | 5 mm |
| Housing width | 5 mm |
| Housing material | Nickel brass (chromium-plated) |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NO |
| Voltage drop (max.) | 2 V (200 mA) |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, 2.0 m (flying leads) |
| Material of cable | Polyurethane |
| Characteristics | increased operating distance |
| Switching hysteresis (max.) | < 10 % |
| Switching frequency | 3000 Hz |
| Housing dimensions | 5 x 5 mm |
