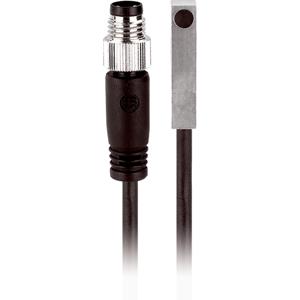

Di-soric DCCQ 05 M 0.8 POK-K-TSL Proximity Sensor
The Di-soric DCCQ 05 M 0.8 POK-K-TSL Proximity Sensor offers Cuboid design design, pnp, 200 mA, NC output, andPigtail, 0.2 m, M8, 3-pin, A-coded connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | DCCQ 05 M 0.8 POK-K-TSL |
Di-soric DCCQ 05 M 0.8 POK-K-TSL Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INM-100 Miniature |
| Operating principle | inductive |
| Design | Cuboid design |
| Installation type | Flush |
| Internal power consumption | < 10 mA |
| Switching distance (SN) | 0.8 mm |
| Standardized measuring plate | 5 x 5 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | 500 V |
| Housing length | 25 mm |
| Housing height | 5 mm |
| Housing width | 5 mm |
| Housing material | Brass (nickel-plated) |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NC |
| Voltage drop (max.) | 2.4 V |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Pigtail, 0.2 m, M8, 3-pin, A-coded |
| Connection cable | TK … |
| Material of cable | Polyurethane |
| Switching hysteresis (max.) | < 15 % |
| Switching frequency | 2000 Hz |
| LED Anzeige | Yes |
| Housing dimensions | 5 x 5 mm |
