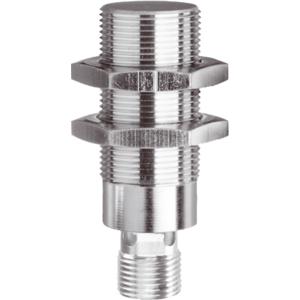

Home Products Inductive Sensor di-soric DCCK 18 M 08B PSK-IBSL Di-soric DCCK 18 M 08B PSK-IBSL Proximity Sensor The Di-soric DCCK 18 M 08B PSK-IBSL Proximity Sensor offers Thread design, pnp, 200 mA, NO output, andConnector, M12, 4-pin, A-coded connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
Brand Di-soric Product Type Proximity Sensor Model Number DCCK 18 M 08B PSK-IBSL
Di-soric DCCK 18 M 08B PSK-IBSL Proximity Sensor - Technical Specifications Specification Value Product series IND-100 Short design Operating principle inductive Design Thread Thread M18 x 1 Installation type quasi-flush Internal power consumption < 10 mA Switching distance (SN) 8 mm Standardized measuring plate 24 x 24 x 1 mm Service voltage 10 … 30 V DC Insulation voltage endurance 500 V Housing length 50 mm Housing material Brass (nickel-plated) Protection class III, operation on protective low voltage Switching output pnp, 200 mA, NO Voltage drop (max.) 2.4 V Ambient temperature during operation -25 … +70 °C Protection type IP 67 Connection Connector, M12, 4-pin, A-coded Connection cable VK … Characteristics increased operating distance Switching hysteresis (max.) < 15 % Switching frequency 500 Hz LED Anzeige Yes Tightening torque 25 Nm
