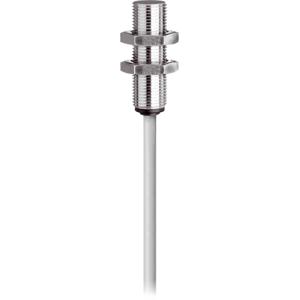

Di-soric DCCK 12 M 04B POLK Proximity Sensor
The Di-soric DCCK 12 M 04B POLK Proximity Sensor offers Thread design, pnp, 200 mA, NC output, andCable, 2.0 m (flying leads) connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | DCCK 12 M 04B POLK |
Di-soric DCCK 12 M 04B POLK Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | IND-100 Short design |
| Operating principle | inductive |
| Design | Thread |
| Thread | M12 x 1 |
| Installation type | Flush |
| Internal power consumption | < 10 mA |
| Switching distance (SN) | 4 mm |
| Standardized measuring plate | 12 x 12 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | 500 V |
| Housing length | 35 mm |
| Housing material | Brass (nickel-plated) |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NC |
| Voltage drop (max.) | 2.4 V |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, 2.0 m (flying leads) |
| Material of cable | PVC |
| Characteristics | increased operating distance |
| Switching hysteresis (max.) | < 15 % |
| Switching frequency | 800 Hz |
| Tightening torque | 10 Nm |
