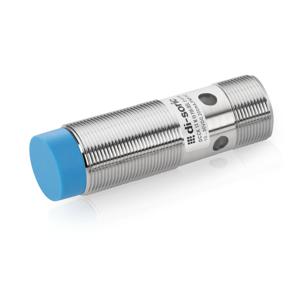

di-soric DCCK 12 M 04 POK-IBSL Inductive Proximity Sensor

Name: di-soric DCCK 12 M 04 POK-IBSL Inductive Proximity Sensor
Availability: InStock
Rating: 4.3 (6 reviews)

The di-soric DCCK 12 M 04 POK-IBSL Proximity Sensor offers Thread design, pnp, 200 mA, NC output, andConnector, M12, 4-pin, A-coded connection. Manufactured by di-soric under the di-soric Proximity Sensor category, this model belongs to the IRDB Series.

Datasheet

Brand	Di-soric
Product Type	Proximity Sensor
Model Number	DCCK 12 M 04 POK-IBSL

di-soric DCCK 12 M 04 POK-IBSL Proximity Sensor - Technical Specifications

Specification	Value
Product series	INS-100 Standard
Operating principle	inductive
Design	Thread
Thread	M12 x 1
Installation type	non-flush
Internal power consumption	< 10 mA
Switching distance (SN)	4 mm
Standardized measuring plate	12 x 12 x 1 mm
Service voltage	10 … 30 V DC
Insulation voltage endurance	500 V
Housing length	45 mm
Housing material	Brass (nickel-plated)
Protection class	III, operation on protective low voltage
Switching output	pnp, 200 mA, NC
Voltage drop (max.)	2.4 V
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin, A-coded
Connection cable	VK …
Switching hysteresis (max.)	< 15 %
Switching frequency	800 Hz
