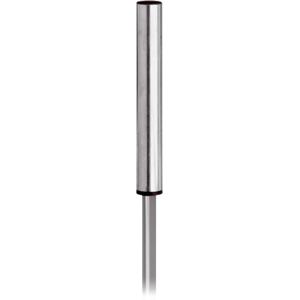

Di-soric DCC 6.5 V 2.5 PSLK-E Proximity Sensor
The Di-soric DCC 6.5 V 2.5 PSLK-E Proximity Sensor offers Cylinder design, pnp, 200 mA, NO output, andCable, 2.0 m (flying leads) connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | DCC 6.5 V 2.5 PSLK-E |
Di-soric DCC 6.5 V 2.5 PSLK-E Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INE Extended |
| Operating principle | inductive |
| Design | Cylinder |
| Installation type | Flush |
| Internal power consumption | < 10 mA |
| Switching distance (SN) | 2.5 mm |
| Standardized measuring plate | 7.5 x 7.5 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Housing length | 45 mm |
| Housing material | Stainless steel (chromium-plated) |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NO |
| Voltage drop (max.) | 2 V (200 mA) |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 68 |
| Connection | Cable, 2.0 m (flying leads) |
| Material of cable | PVC |
| Switching hysteresis (max.) | 10 % |
| Switching frequency | 1000 Hz |
| Diameter | Ø 6.5 mm (Diameter) |
| Material of sensor probe | Ceramic |
