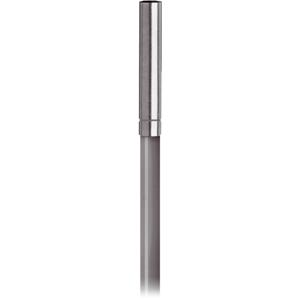

Home Products Inductive Sensor di-soric DCC 4.0 V 0.6 PSLK-E Di-soric DCC 4.0 V 0.6 PSLK-E Proximity Sensor The Di-soric DCC 4.0 V 0.6 PSLK-E Proximity Sensor offers Cylinder design, pnp, 200 mA, NO output, andCable, 2.0 m (flying leads) connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the INS Series.
Brand Di-soric Product Type Proximity Sensor Model Number DCC 4.0 V 0.6 PSLK-E
Di-soric DCC 4.0 V 0.6 PSLK-E Proximity Sensor - Technical Specifications Specification Value Product series INM-100 Miniature Operating principle inductive Design Cylinder Installation type Flush Internal power consumption < 10 mA Switching distance (SN) 0.6 mm Standardized measuring plate 4 x 4 x 1 mm Service voltage 10 … 30 V DC Insulation voltage endurance According to IEC 60947-5-2 (7.2.3.1) Housing length 25 mm Housing material Stainless steel (V2A) Switching output pnp, 200 mA, NO Voltage drop (max.) 2 V (200 mA) Ambient temperature during operation -25 … +70 °C Protection type IP 68 Connection Cable, 2.0 m (flying leads) Material of cable Polyurethane Switching hysteresis (max.) < 10 % Switching frequency 3000 Hz Diameter Ø 4.0 mm (Diameter) Tightening torque 1.5 Nm
