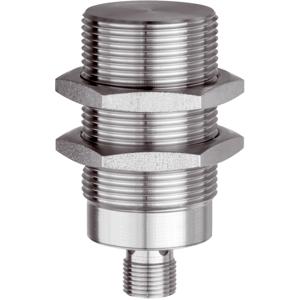

Home Products Inductive Sensor di-soric DCC 30 VL 20 NOK-IBSL Di-soric DCC 30 VL 20 NOK-IBSL Proximity Sensor The Di-soric DCC 30 VL 20 NOK-IBSL Proximity Sensor offers Thread design, npn, 200 mA, NC output, andConnector, M12, 3-pin, A-coded connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
Brand Di-soric Product Type Proximity Sensor Model Number DCC 30 VL 20 NOK-IBSL
Di-soric DCC 30 VL 20 NOK-IBSL Proximity Sensor - Technical Specifications Specification Value Product series INW-100 Full metal Operating principle inductive Design Thread Thread M30 x 1.5 Installation type Flush Switching distance (SN) 20 mm Standardized measuring plate 60 x 60 x 1 mm Service voltage 10 … 30 V DC No-load current (max.) < 10 mA Insulation voltage endurance According to IEC 60947-5-2 (7.2.3.1) Housing length 63.5 mm Housing material Stainless steel (1.4435 / AISI 316L) Protection class III, operation on protective low voltage Switching output npn, 200 mA, NC Voltage drop (max.) 2 V Ambient temperature during operation -25 … +85 °C Protection type IP 68 / IP 69K Connection Connector, M12, 3-pin, A-coded Connection cable VK … Characteristics extremely high operating distance, < 40 bar, Full-metal casing closed Switching hysteresis (max.) 15 % Switching frequency 120 Hz Tightening torque 150 Nm
