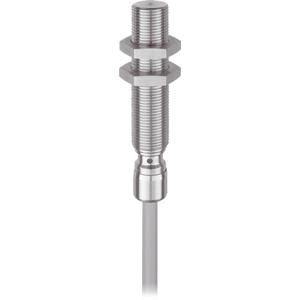

Di-soric DCC 12 VL 06 POLK Proximity Sensor
The Di-soric DCC 12 VL 06 POLK Proximity Sensor offers Thread design, pnp, 200 mA, NC output, andCable, 2.0 m (flying leads) connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | DCC 12 VL 06 POLK |
Di-soric DCC 12 VL 06 POLK Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INW-100 Full metal |
| Operating principle | inductive |
| Design | Thread |
| Thread | M12 x 1 |
| Installation type | Flush |
| Switching distance (SN) | 6 mm |
| Standardized measuring plate | 18 x 18 x 1 mm |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | < 10 mA |
| Insulation voltage endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Housing length | 69.2 mm |
| Housing material | Stainless steel (1.4435 / AISI 316L) |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NC |
| Voltage drop (max.) | 2 V |
| Ambient temperature during operation | -25 … +85 °C |
| Protection type | IP 68 / IP 69K |
| Connection | Cable, 2.0 m (flying leads) |
| Material of cable | TPE-S |
| Characteristics | extremely high operating distance, < 80 bar, Full-metal casing closed |
| Switching hysteresis (max.) | 15 % |
| Switching frequency | 600 Hz |
| Tightening torque | 20 Nm |
