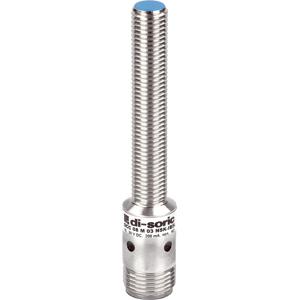

Di-soric DCC 08 M 03 NSK-IBSL Proximity Sensor
The Di-soric DCC 08 M 03 NSK-IBSL Proximity Sensor offers Thread design, npn, 200 mA, NO output, andConnector, M12, 4-pin, A-coded connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | DCC 08 M 03 NSK-IBSL |
Di-soric DCC 08 M 03 NSK-IBSL Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INE Extended |
| Operating principle | inductive |
| Design | Thread |
| Thread | M8 x 1 |
| Installation type | Flush |
| Internal power consumption | < 10 mA |
| Switching distance (SN) | 3 mm |
| Standardized measuring plate | 9 x 9 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | 500 V |
| Housing length | 66 mm |
| Housing material | Brass |
| Protection class | III, operation on protective low voltage |
| Switching output | npn, 200 mA, NO |
| Voltage drop (max.) | 2 V |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Connector, M12, 4-pin, A-coded |
| Connection cable | VK … |
| Characteristics | extremely high operating distance |
| Switching hysteresis (max.) | < 15 % |
| Switching frequency | 1000 Hz |
