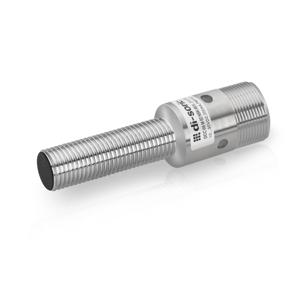

di-soric DCC 08 M 02 NSK-IBSL Inductive Proximity Sensor

Name: di-soric DCC 08 M 02 NSK-IBSL Inductive Proximity Sensor
Availability: InStock
Rating: 4.5 (19 reviews)

The di-soric DCC 08 M 02 NSK-IBSL Proximity Sensor offers Thread design, npn, 200 mA, NO output, andConnector, M12, 4-pin, A-coded connection. Manufactured by di-soric under the di-soric Proximity Sensor category, this model belongs to the INS Series.

Datasheet

Brand	Di-soric
Product Type	Proximity Sensor
Model Number	DCC 08 M 02 NSK-IBSL

di-soric DCC 08 M 02 NSK-IBSL Proximity Sensor - Technical Specifications

Specification	Value
Product series	INS-200 Standard 2-SN
Operating principle	inductive
Design	Thread
Thread	M8 x 1
Installation type	Flush
Internal power consumption	< 10 mA
Switching distance (SN)	2 mm
Standardized measuring plate	8 x 8 x 1 mm
Service voltage	10 … 30 V DC
Insulation voltage endurance	500 V
Housing length	45 mm
Housing material	Stainless steel
Protection class	III, operation on protective low voltage
Switching output	npn, 200 mA, NO
Voltage drop (max.)	2.4 V
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin, A-coded
Connection cable	VK …
Characteristics	increased operating distance
Switching hysteresis (max.)	< 15 %
Switching frequency	2000 Hz
Tightening torque	4 Nm
