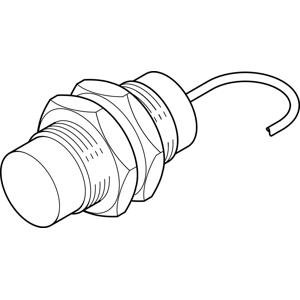

Di-soric DCB 30 MN 20 NO-3 Proximity Sensor
The Di-soric DCB 30 MN 20 NO-3 Proximity Sensor offers Thread design, npn, 400 mA, NC output, andCable, 2.0 m (flying leads) connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | DCB 30 MN 20 NO-3 |
Di-soric DCB 30 MN 20 NO-3 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INE Extended |
| Operating principle | inductive |
| Design | Thread |
| Thread | M30 x 1.5 |
| Installation type | non-flush |
| Internal power consumption | < 20 mA |
| Switching distance (SN) | 20 mm |
| Standardized measuring plate | 60 x 60 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | 500 V |
| Housing length | 60 mm |
| Housing material | Brass (nickel-plated) |
| Protection class | III, operation on protective low voltage |
| Switching output | npn, 400 mA, NC |
| Voltage drop (max.) | 1 V (400 mA) |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 67 |
| Connection | Cable, 2.0 m (flying leads) |
| Material of cable | PVC |
| Characteristics | increased operating distance |
| Material | PBT (Sensor probe) |
| Switching hysteresis (max.) | 1 … 20 % |
| Switching frequency | 200 Hz |
| LED Anzeige | Yes |
