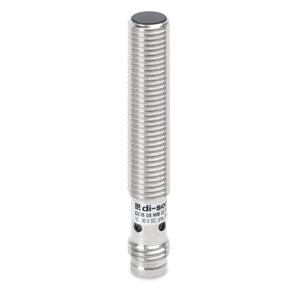

Home Products Inductive Sensor di-soric DCB 08 MB 02 NS-T3 Di-soric DCB 08 MB 02 NS-T3 Proximity Sensor The Di-soric DCB 08 MB 02 NS-T3 Proximity Sensor offers Thread design, npn, 200 mA, NO output, andConnector, M8, 3-pin, A-coded connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
Brand Di-soric Product Type Proximity Sensor Model Number DCB 08 MB 02 NS-T3
Di-soric DCB 08 MB 02 NS-T3 Proximity Sensor - Technical Specifications Specification Value Product series INE Extended Operating principle inductive Design Thread Thread M8 x 1 Installation type Flush Internal power consumption < 10 mA Switching distance (SN) 2 mm Standardized measuring plate 8 x 8 x 1 mm Service voltage 10 … 30 V DC Insulation voltage endurance 500 V Housing length 50 mm Housing material Brass (nickel-plated) Protection class III, operation on protective low voltage Switching output npn, 200 mA, NO Voltage drop (max.) 1.8 V (200 mA) Ambient temperature during operation -25 … +70 °C Protection type IP 67 Connection Connector, M8, 3-pin, A-coded Connection cable TK … Characteristics increased operating distance Material PBT (Sensor probe) Switching hysteresis (max.) 1 … 20 % Switching frequency 5000 Hz LED Anzeige Yes
