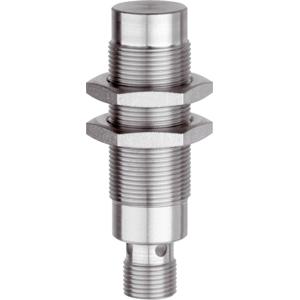

Di-soric D7C 18 V 20 POK-IBSL Proximity Sensor
The Di-soric D7C 18 V 20 POK-IBSL Proximity Sensor offers Thread design, pnp, 200 mA, NC output, andConnector, M12, 4-pin, A-coded connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | D7C 18 V 20 POK-IBSL |
Di-soric D7C 18 V 20 POK-IBSL Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INW-300 Full metal extended |
| Operating principle | inductive |
| Design | Thread |
| Thread | M18 x 1 |
| Installation type | non-flush |
| Internal power consumption | < 10 mA |
| Switching distance (SN) | 20 mm |
| Standardized measuring plate | 60 x 60 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Housing length | 63.5 mm |
| Housing material | Stainless steel (V2A 1.4305 / AISI 303) |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NC |
| Voltage drop (max.) | 2 V |
| Ambient temperature during operation | -25 … +85 °C |
| Protection type | IP 68 |
| Connection | Connector, M12, 4-pin, A-coded |
| Connection cable | VK … |
| Characteristics | extremely high operating distance, < 60 bar, Full-metal casing closed |
| Switching hysteresis (max.) | 15 % |
| Switching frequency | 200 Hz |
| Tightening torque | 50 Nm |
