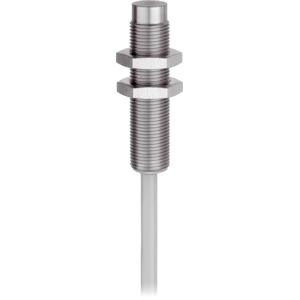

Di-soric D7C 12 V 04 PSLK Proximity Sensor
The Di-soric D7C 12 V 04 PSLK Proximity Sensor offers Thread design, pnp, 200 mA, NO output, andCable, 2.0 m (flying leads) connection. Manufactured by Di-soric under the Di-soric Proximity Sensor category, this model belongs to the DCC Series.
| Brand | Di-soric |
| Product Type | Proximity Sensor |
| Model Number | D7C 12 V 04 PSLK |
Di-soric D7C 12 V 04 PSLK Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Product series | INW-300 Full metal extended |
| Operating principle | inductive |
| Design | Thread |
| Thread | M12 x 1 |
| Installation type | non-flush |
| Internal power consumption | < 12 mA |
| Switching distance (SN) | 4 mm |
| Standardized measuring plate | 12 x 12 x 1 mm |
| Service voltage | 10 … 30 V DC |
| Insulation voltage endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Housing length | 50 mm |
| Housing material | Stainless steel |
| Protection class | III, operation on protective low voltage |
| Switching output | pnp, 200 mA, NO |
| Voltage drop (max.) | 2 V |
| Ambient temperature during operation | -25 … +70 °C |
| Protection type | IP 69K |
| Connection | Cable, 2.0 m (flying leads) |
| Material of cable | Polyurethane |
| Characteristics | < 80 bar, Full-metal casing closed, pressure-resistant |
| Switching hysteresis (max.) | 15 % (5 % typ.) |
| Switching frequency | 250 Hz |
| Tightening torque | 10 Nm |
