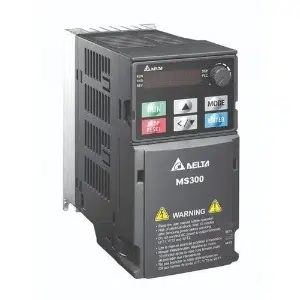

Delta VFD7A5MS21ANSHA Variable Frequency Drive
The Delta VFD7A5MS21ANSHA Variable Frequency Drive is designed for controlled motor operation, supporting 1.5 kW and 2 HP applications using a stable 230V, Single-phase AC 200 V ~240 V, 50 / 60 Hz input operation. It delivers a rated 7.5 A Heavy duty output current and 8.5 A Normal duty output current. The drive uses a Natural air cooling method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta MS300 Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD7A5MS21ANSHA |
Delta VFD7A5MS21ANSHA Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 230V, Single-phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz |
| Applicable Motor Output ( kW) | 1.5 kW |
| Applicable Motor Output (HP) | 2 HP |
| Heavy Duty Rated Output Current (A) | 7.5 A |
| Normal Duty Rated Output Current (A) | 8.5 A |
| Cooling Method | Natural air cooling |
| IP Level | IP20 |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (ΓΒ±0.1%) |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W Γ H (mm) | 87Γ157 |
| Size: D (mm) | 152 |
