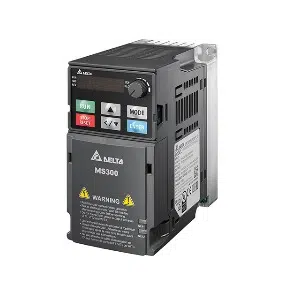

Delta VFD7A3ME43AFNAA Variable Frequency Drive
The Delta VFD7A3ME43AFNAA Variable Frequency Drive is designed for controlled motor operation, supporting 3 kW and 4 HP applications using a stable 460V, Three-phase AC, 380V~480V, 50 / 60Hz input operation. It delivers a rated 7.3 A Heavy duty output current and 8 A Normal duty output current. The drive uses a Fan cooling method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta ME300 Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD7A3ME43AFNAA |
Delta VFD7A3ME43AFNAA Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 3 kW |
| Applicable Motor Output (HP) | 4 HP |
| Heavy Duty Rated Output Current (A) | 7.3 A |
| Normal Duty Rated Output Current (A) | 8 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | Built-In |
| Safe Torque Off (STO) | None |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0.00 ~ 599.00 Hz (ΓΒ±0.1%) |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W Γ H (mm) | 87Γ157 |
| Size: D (mm) | 163 |
