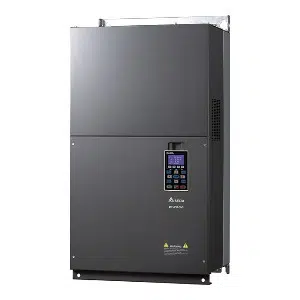

Delta VFD750C63B-00 Variable Frequency Drive
The Delta VFD750C63B-00 Variable Frequency Drive is designed for controlled motor operation, supporting 55 kW and 75 HP applications using a stable 3-Phase 525VAC ~ 690VAC, 50 / 60Hz input operation. It delivers a rated 67 A output current with an 80 kVA output capacity, enabling dependable speed and torque adjustment across industrial equipment. The drive uses a Fan Cooling method and features an IP00 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta C2000 Series.
| Brand | Delta |
| Product | VFD |
| Model Number | VFD750C63B-00 |
Delta VFD750C63B-00 Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3-Phase 525VAC ~ 690VAC ( -15% ~ +10%), 50 / 60Hz |
| Output Capacity (kVA) Normal Duty | 80 kVA |
| Output Current (A) Normal Duty | 67 A |
| Applicable Motor Output (kW) Normal Duty | 55 kW |
| Applicable Motor Output (HP) Normal Duty | 75 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP00 |
| NEMA Protection Level | UL Open Type |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount with 690V rated current |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 446 ~ 759VAC |
| Drive Weight (Kg) | 39Β±1.5 kg |
