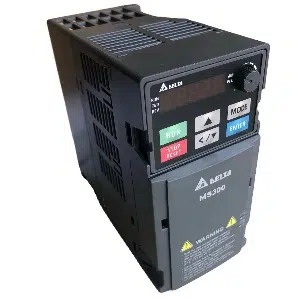

Delta VFD4A8MS21MNSAA Variable Frequency Drive
The Delta VFD4A8MS21MNSAA Variable Frequency Drive is designed for controlled motor operation, supporting 0.75 kW and 1 HP applications using a stable 230V, Single-phase AC 200 V ~240 V, 50 / 60 Hz input operation. It delivers a rated 4.8 A Heavy duty output current and 5 A Normal duty output current. The drive uses a Natural air cooling method and features an IP66 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta MS300 Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD4A8MS21MNSAA |
Delta VFD4A8MS21MNSAA Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 230V, Single-phase AC 200 V ~240 V (-15% ~ +10%), 50 / 60 Hz |
| Applicable Motor Output ( kW) | 0.75 kW |
| Applicable Motor Output (HP) | 1 HP |
| Heavy Duty Rated Output Current (A) | 4.8 A |
| Normal Duty Rated Output Current (A) | 5 A |
| Cooling Method | Natural air cooling |
| IP Level | IP66 / NEMA 4X |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | Standard Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 599.00 Hz (ΓΒ±0.1%) |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W Γ H (mm) | 72Γ142 |
| Size: D (mm) | 143 |
